How to Make Golf Cart Faster: Speed Up Your Ride Safely

The quickest way to make a golf cart faster depends on the drivetrain. On a gas cart, start with the governor adjustment. On an electric cart, start with a controller upgrade, then look at voltage, motor, gear ratio and tire size. More speed can move a cart into low-speed vehicle rules, so read the safety section below and check your state's laws before you modify it.

I have spent years working with EA Carts customers who wanted more speed out of their electric and gas carts. This guide breaks down every modification worth considering, from quick bolt-on upgrades to full powertrain overhauls. I will cover what each upgrade actually does, realistic speed gains you can expect, and, just as importantly, what to avoid so you do not fry your motor or void your warranty.

Whether you own a Club Car, EZGO, Yamaha, or one of our high-performance electric golf carts, the principles are the same. Let us get into it.

How Fast Do Golf Carts Actually Go? (Stock vs. Upgraded)

Before you start swapping parts, you need a baseline. Here are factory top speeds that makers list, next to the speeds D&D Motor Systems, a U.S. motor maker, publishes for its upgrade motors on flat ground:

EA Carts, the electric golf cart maker based in Carmel, Indiana, builds lithium carts on 60V and 72V systems, including the EA4R+ 60V, the EA6R+ 72V 6-seater and the EA4X4 72V, a true four-wheel-drive golf cart. EA Carts worked with the Indianapolis Colts during the 2024-25 season.

Cart Type	Stock Speed	Modified Speed (Realistic)	Maximum Potential
36V Electric	About 14 mph (D&D's figure for a standard factory cart)	21 mph (D&D speed motor at 36V)	24 mph (same motor after a 48V conversion)
48V Electric	19 mph (Club Car Onward, level ground)	24 mph (D&D speed motor at 48V)	Above 25 mph it falls outside the federal LSV definition
60V+ Electric	25 mph listed (EA4R+ 60V)	Already at the 25 mph LSV ceiling	Above 25 mph it falls outside the federal LSV definition
72V Electric	25 mph listed (EA6R+, EA4x4)	Already at the 25 mph LSV ceiling	Above 25 mph it falls outside the federal LSV definition
Gas (Stock Governor)	12 mph (E-Z-GO RXV gas, Yamaha Drive2 QuieTech)	Depends on the governor setting and supporting parts	Above 25 mph it falls outside the federal LSV definition

A few things jump out. First, voltage matters enormously for electric carts. A 36V system versus a 48V system is worth about 3 mph on the same motor in D&D's EZGO chart, which lists each motor 3 mph faster at 48 volts than at 36. Second, exceeding 25 mph takes a cart past the federal low-speed vehicle limit, more on that later. And third, going past the stock speed usually means upgrading several components together, not just one.

Models like the EA4R+ 60V and the EA4X4 72V already ship with 60V and 72V lithium systems and list a 25 mph top speed before any modifications.

1. Upgrade the Motor Controller (Best Single Upgrade)

If you only do one thing to make your golf cart faster, upgrade the motor controller. This is the electronic brain that regulates how much power flows from your batteries to the motor, and the stock controller on most carts is intentionally conservative.

Why It Works

Check the amp rating on your stock controller before you shop. Navitas lists its TSX3.0 DC controller at 600A for 36 to 48 volt carts, and Alltrax offers its Alltrax AXE in 300 through 650 amp versions. More amps means more torque off the line and a higher top speed, because the motor can finally pull the power it is capable of handling.

Think of it this way: your stock controller is a bottleneck. The motor may be able to spin faster than the stock controller lets it. Removing that bottleneck is a direct speed upgrade on an electric cart.

Expected Speed Gains

• With stock motor: a gain that depends on the motor, gearing and settings
• With upgraded motor: a larger gain when motor and controller are matched
• Installation time: varies by cart; Navitas sells plug and play kits for major OEM golf cars
• Cost range: depends on brand and amperage rating

What to Look For

Match the controller to your motor and battery voltage. Check that the controller's rated voltage range covers your pack; the TSX3.0, for example, is rated for 36 to 48 volts. Also confirm the amperage rating exceeds what your motor draws at peak, if the motor tries to pull 400 amps through a 275-amp controller, you will burn out the controller and possibly damage the motor.

Programmable controllers are worth the extra cost. They let you adjust acceleration curves, top speed limits, and regenerative braking settings through Bluetooth or a handheld programmer. That flexibility matters if your cart serves double duty between the golf course and the road.

2. Battery Upgrade or Voltage Conversion

The fundamental rule of electric golf cart speed is simple: voltage equals speed. Higher voltage means more RPMs from the motor, which translates directly to faster top speed.

Option A: Replace Worn Batteries

Before you upgrade anything, check your existing batteries. Old, sulfated lead-acid batteries sag under load and cannot deliver their rated voltage. At rest, Trojan's state-of-charge chart puts a fully charged 48V flooded pack at 50.93 V, and a worn pack drops well below its rating when you step on the pedal. Replacing worn batteries with fresh ones can recover speed you have been losing to degradation.

Option B: Switch to Lithium

A lithium-ion battery conversion is one of the highest-impact upgrades you can make. Here is why:

• Weight reduction: Trojan lists its T-875 8V battery (170 Ah) at 63 lbs, so a set of six weighs 378 lbs. RoyPow lists its 48V 150Ah S51150A-A lithium pack at 149.91 lbs, about 228 lbs lighter. Less weight means faster acceleration and higher top speed.
• Consistent voltage: Lead-acid batteries drop voltage as they discharge. RoyPow says a lithium golf cart battery can keep a flat voltage profile during the entire discharge process, so the cart holds its speed deeper into the charge.
• Zero maintenance: No watering and no equalization charges. EA lists its lithium packs as zero maintenance.
• Longer lifespan: RoyPow rates the S51150A-A at over 3,500 cycles. Lead-acid cycle life depends on depth of discharge, so compare the cycle rating on each maker's data sheet.
• Speed gain: the lighter pack helps acceleration and the steadier voltage holds top speed later into the charge; the gain varies by cart.

The EA4F+ 60V uses a 60-volt lithium battery out of the box and lists a 25 mph top speed. If you want to understand how battery choice affects real-world performance, our electric golf cart range guide breaks it down in detail.

Option C: Full Voltage Conversion

Going from a 36V to a 48V system (or 48V to 72V) is the nuclear option for speed. D&D Motor Systems puts the gain from a 36V to 48V conversion at around 3 to 4 mph on a standard EZGO, Club Car or Yamaha. But this is not a simple battery swap. You will also need a matching controller, potentially a new motor, upgraded wiring with thicker gauge cables, and a compatible charger. Total cost depends on the target voltage and component quality, so price the full parts list before you start.

3. Motor Swap or Upgrade

The electric motor is where voltage and amperage turn into actual wheel-spinning torque. Stock motors on most golf carts are designed for durability and efficiency at low speeds, not performance.

Speed Motors vs. Torque Motors

When shopping for replacement motors, understand the trade-off:

• Speed motors have smaller field coils that create a weaker magnetic field, allowing the armature to spin faster. Higher RPM means higher top speed, but less pulling power on hills and from a standstill.
• Torque motors have larger field coils for stronger magnetic fields. More pull, more grunt, but lower top speed.

For most people, a moderate high-speed motor is the sweet spot, so compare its listed speed and torque with your stock motor's. D&D Motor Systems, for example, lists its EZGO series speed motor at 21 mph on 36 volts and 24 mph on 48 volts, against a standard factory speed of about 14 mph, and rates that motor at 15 percent less torque than stock.

DC vs. AC Motor Upgrade

Many older golf carts use DC (direct current) motors, while newer models such as the Yamaha Drive2 AC and EA's EA4F+, EA6R+ and EA4x4 use AC motors. Upgrading an older DC cart to an AC (alternating current) motor is a significant step up:

• AC advantages: Higher efficiency, regenerative braking, smoother acceleration, longer lifespan, no brushes to wear.
• AC disadvantages: Requires matching AC controller, higher upfront cost for the motor and controller, more complex installation.

If you are building a serious performance cart, an AC motor system is worth the investment. If you just want a few extra mph, a higher-RPM DC motor with a matched controller will do the job at a lower cost.

Critical Rule: Always Match Motor and Controller

This is where people get into trouble. If your new motor draws 400 amps at peak but your controller only handles 275 amps, the controller becomes the weak link. It will overheat, trigger thermal shutoffs, or fail outright. When upgrading the motor, upgrade the controller simultaneously. The same applies in reverse, a 500-amp controller paired with a stock motor can push more current than the motor windings can handle, leading to overheating and premature failure.

4. Gear Ratio Modification

Changing the gear ratio is an underrated speed upgrade that does not require touching the electrical system at all. It works on both electric and gas carts.

How Gear Ratios Affect Speed

Golf carts use a fixed gear ratio between the motor (or engine) and the axle. A higher gear ratio (numerically lower, like 6:1 instead of 12:1) means the wheels spin faster for every revolution of the motor. The trade-off is reduced torque, faster on flat ground, weaker on hills.

Stock golf carts typically have conservative gear ratios designed for loaded carts climbing moderate grades. If your primary use is flat terrain, neighborhoods, campgrounds, parking lots, a taller gear ratio raises top speed in proportion to the ratio change, with no electrical upgrades. Yamaha lists a forward ratio of 11.59:1 for the 2026 Drive2 QuieTech; at the same RPM, a hypothetical 10:1 set would raise wheel speed by 11.59 / 10 = 1.16, about 16 percent, or from 12.0 mph to about 13.9 mph.

How to Change It

On most Club Car, EZGO, and Yamaha models, you change the gear ratio by swapping the input and output gears in the rear differential. Some carts use a belt-driven system where you swap pulley sizes instead. It is a mechanical job, and the time depends on the cart model and your experience level.

Who Should Do This

Gear ratio changes make the most sense if you have already maxed out your controller and batteries but still want more top-end speed. They also work well in combination with lift kits and larger tires (covered next), which also affect your effective gear ratio.

5. Larger Tires (Easiest Speed Boost)

If you want a fast, cheap speed bump with no wiring or programming, go straight to larger tires. This is a common first modification for a reason. It works, it is easy, and it is reversible.

The Math

Your motor spins the axle at a fixed RPM. Bigger tires cover more ground per revolution. At the same motor RPM, top speed rises in proportion to tire diameter. Going from 18-inch to 20-inch tires is 20 / 18 = 1.11, about 11 percent, and 22-inch tires are 22 / 18 = 1.22, about 22 percent. On a cart that does 12 mph on 18-inch tires, that works out to about 13.3 mph and 14.7 mph, as long as the motor can hold the same RPM with the bigger, heavier tires. D&D Motor Systems puts the usual gain from larger tires at 2 to 3 mph.

Tire Size	Approximate Speed Gain	Notes
18" (stock)	Baseline	Yamaha lists an 18x8.50-8 tire on the 2026 Drive2 QuieTech
20"	+11% (about 13.3 mph from 12 mph)	Yamaha also lists a 205/65-10 tire (about 20.5 in.) on the same model
22"	+22% (about 14.7 mph from 12 mph)	May need a lift kit
23-24"	+28 to 33% (about 15.3 to 16 mph from 12 mph)	Confirm fitment with the lift kit maker

The Trade-Off

Bigger tires are heavier, which slightly reduces acceleration. Your motor has to work harder to get them spinning, which can also reduce range on electric carts. On hilly terrain, the reduced torque at the wheel is noticeable. On flat ground the diameter math above holds if the motor has the power to turn the larger tire at the same RPM. On hills or with a load it may not, so the real gain can be smaller.

Tires beyond 22 inches often need a lift kit to clear the body, so confirm tire size with the kit maker before you buy. Check our golf cart lift kit guide for compatibility details. And if you are exploring different types of golf carts, note that some models accommodate larger tires better than others due to fender clearance differences.

Tire Pressure Matters Too

Before buying new tires, check your current tire pressure. Under-inflated tires create more rolling resistance and can rob you of speed and range. Inflate to the operating pressure in your owner's manual rather than the maximum molded on the sidewall. The 2026 Yamaha Drive2 QuieTech owner's manual lists 16 psi for its 18x8.50-8 tire and 22 psi for the 205/65-10. Then see if that alone solves your speed issue.

6. Governor Adjustment or Bypass (Gas Carts)

Gas golf carts use a mechanical governor, a physical device that restricts the throttle to limit engine RPM and top speed. Adjusting or removing this governor is the primary way to make a gas cart faster.

What the Governor Does

The governor monitors engine RPM through a spring-loaded mechanism connected to the throttle linkage. When RPMs hit the preset limit, it physically pulls back the throttle. This holds the cart to its rated top speed, which Yamaha lists as 12.0 mph for the 2026 Drive2 QuieTech, regardless of how hard you press the pedal.

How to Adjust or Bypass It

Method 1: Governor Spring Adjustment

The simplest approach. Most governors use a spring to set the RPM threshold. Tightening or repositioning the governor spring increases the RPM limit. It is a short job with basic hand tools, and the gain depends on how far you raise the limit.

Method 2: Governor Cable Disconnection

Disconnecting the governor cable from the throttle linkage removes the RPM restriction entirely. The engine will rev as high as the throttle allows. This is more aggressive, expect a larger gain and more risk, but you are relying entirely on the engine's internal limits.

Method 3: Full Governor Removal

Physically removing the governor mechanism. This is permanent and requires some mechanical teardown. Only recommended if you are also upgrading the exhaust, air intake, and clutch to handle higher RPMs.

Brand-Specific Notes

Check your service manual for the exact location and procedure. Typical layouts:

• EZGO: Governor is usually located on the engine near the throttle linkage. Adjust the governor rod by loosening the locknut and tightening the adjustment screw.
• Club Car: Look for the governor arm connected to the carburetor. Adjusting the cable length changes the RPM limit.
• Yamaha: Governor is typically spring-loaded on the engine block. Accessible after removing the engine cover.

Warning

Removing or bypassing the governor increases engine RPM beyond designed operating parameters. The 2026 Yamaha Drive2 QuieTech owner's manual lists governors among the safety devices owners should not modify. This accelerates wear on the engine, transmission, and clutch. If you remove the governor, you should also upgrade the clutch to a performance unit rated for higher RPMs and consider upgrading the exhaust system to handle increased airflow. Without these supporting mods, engine life will decrease significantly.

7. Speed Limiter Removal (Electric Carts)

Electric carts do not have a mechanical governor like gas carts. Instead, they use electronic speed limiting built into the controller.

Methods

Controller Reprogramming

Many aftermarket controllers let you adjust the speed limit through software. Navitas says its TSX controllers are fully programmable through a Bluetooth app, including current limits and maximum speeds, and Alltrax publishes its own ToolKit software for its controllers. You can raise the top speed, adjust acceleration ramps, and fine-tune the power curve. This is the cleanest approach, no hardware changes needed.

Resistor Modification

Some stock controllers use a resistor on the speed input circuit. Replacing this resistor with one of a different value changes the speed limit. This is model-specific and requires knowing your controller's wiring diagram.

Speed Magnet Repositioning (Club Car)

Certain Club Car models read motor speed from a sensor that the controller uses for speed limiting and braking. Changing it is model-specific, can disable regenerative braking, and is a job for a dealer with the service manual.

Electric Speed Limiter Removal: Risks

Unlike gas carts where the governor is a separate mechanism, electric speed limiters are integrated into the controller logic. Hacking or bypassing them can cause the controller to malfunction, overheat, or throw error codes that leave you stranded. If you want more speed from an electric cart, the controller upgrade route (covered in Section 1) is far safer and more reliable than trying to hack the stock controller.

8. Weight Reduction

Every pound you remove from the cart helps acceleration, and it can add a little top speed on grades. This is free or cheap, and it complements every other upgrade on this list.

Where to Cut Weight

• Batteries: Lithium conversion saved about 228 lbs in the Trojan and RoyPow example in Section 2
• Rear seat kit: If you rarely carry rear passengers, removing the fold-down rear seat takes real weight off the back
• Heavy accessories: Cooler racks, brush guards, cargo boxes, and aftermarket steel bumpers add up. Remove what you do not need
• Roof and windshield: A roof and windshield add weight up high. Removing them improves aerodynamics too, though comfort and weather protection take a hit
• Undercarriage: Mud, stones, and debris accumulate over time. A thorough cleaning removes caked-on crud you did not know was there

How Much Difference Does It Really Make?

On a 48V electric cart weighing 900 lbs with passengers, dropping 200 lbs represents a 22% reduction in total weight. That is significant. You will notice faster acceleration, and a smaller change in top speed on flat ground. Combined with a controller upgrade, the effect compounds, more available power pushing less mass.

9. Air Intake and Exhaust Upgrades (Gas Carts)

Gas cart engines breathe through restrictive stock air filters and exhaust systems. Opening up the airflow path lets the engine produce more horsepower, which translates to more speed.

High-Flow Air Filter

Replacing the stock paper air filter with a high-flow aftermarket filter (K&N or equivalent) improves air intake volume. More air plus more fuel equals more power. This is a quick swap. But the real benefit comes when combined with exhaust upgrades.

Performance Exhaust

A freer-flowing exhaust header and muffler reduces backpressure, allowing spent gases to exit faster. This can free up a little horsepower, and it works best combined with a high-flow intake.

Carburetor Adjustment

After improving airflow, the carburetor's air-fuel mixture may need retuning. A richer mixture compensates for the increased air volume. This is a simple screw adjustment on most golf cart carburetors, but getting it wrong can cause engine damage. If you are not comfortable tuning a carburetor, have a small engine mechanic do it.

10. Clutch and Drive System Upgrades (Gas Carts)

The clutch system on a gas golf cart determines how engine power transfers to the wheels. Stock clutches are calibrated for slow, smooth engagement. Performance clutches engage harder and faster, putting more power to the ground.

Performance Primary Clutch

A stiffer primary clutch spring or aftermarket clutch unit engages at higher RPMs, keeping the engine in its power band longer before the clutch grabs. This improves acceleration significantly.

Secondary Clutch / Driven Clutch

The driven (secondary) clutch on the axle side can also be upgraded with performance springs and heavier weights. This changes the shift curve and can improve both acceleration and top speed.

Drive Belt

A worn or stretched drive belt slips under load, wasting power. Replacing it with a new, high-quality belt restores power transfer efficiency. Check belt condition if your cart feels sluggish. It is a short job on most carts.

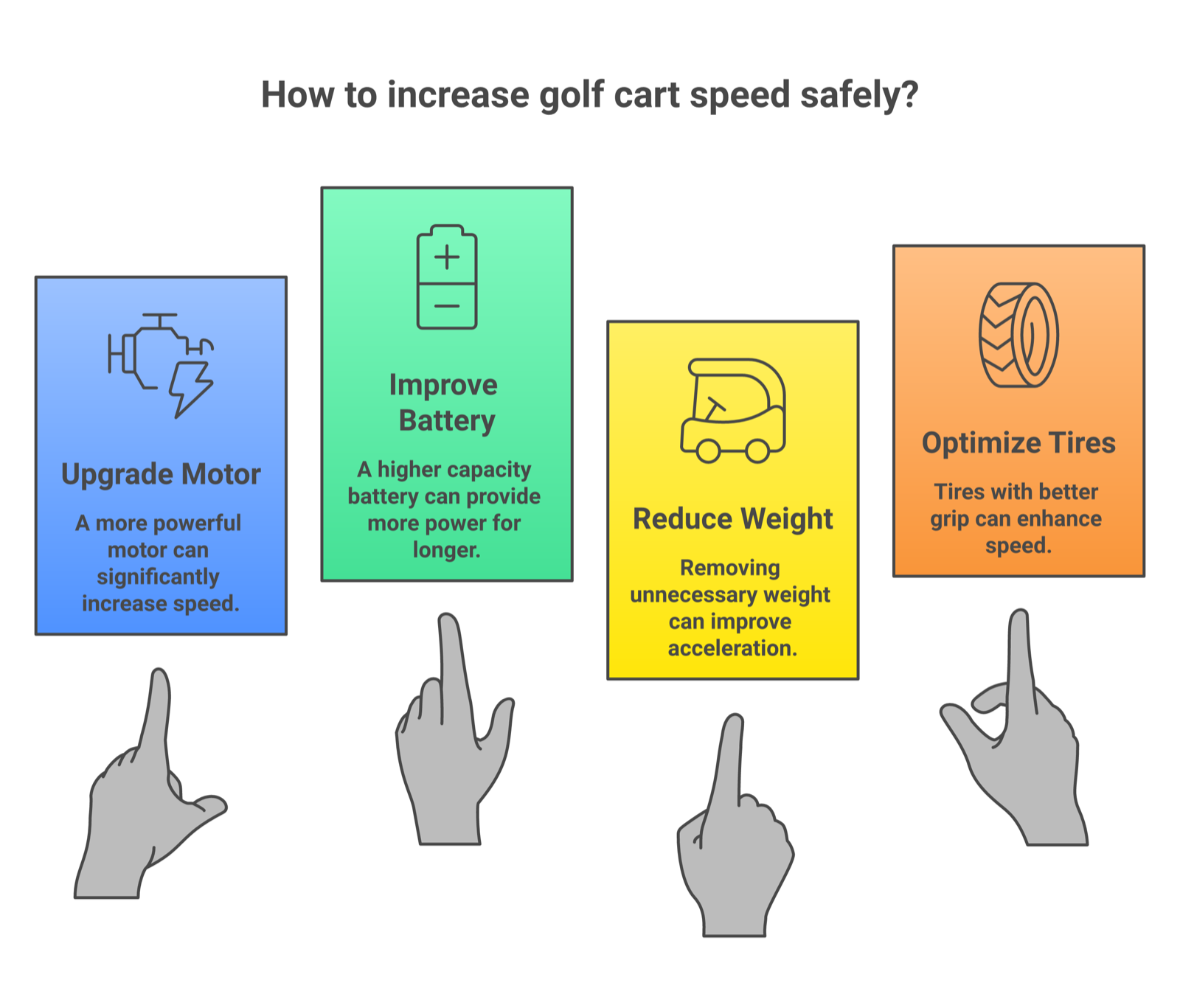

The "Stack" Approach: How to Combine Upgrades for Maximum Speed

Individual upgrades give you incremental gains. But the real transformation happens when you stack multiple modifications that work together. Here is the recommended upgrade sequence for electric carts:

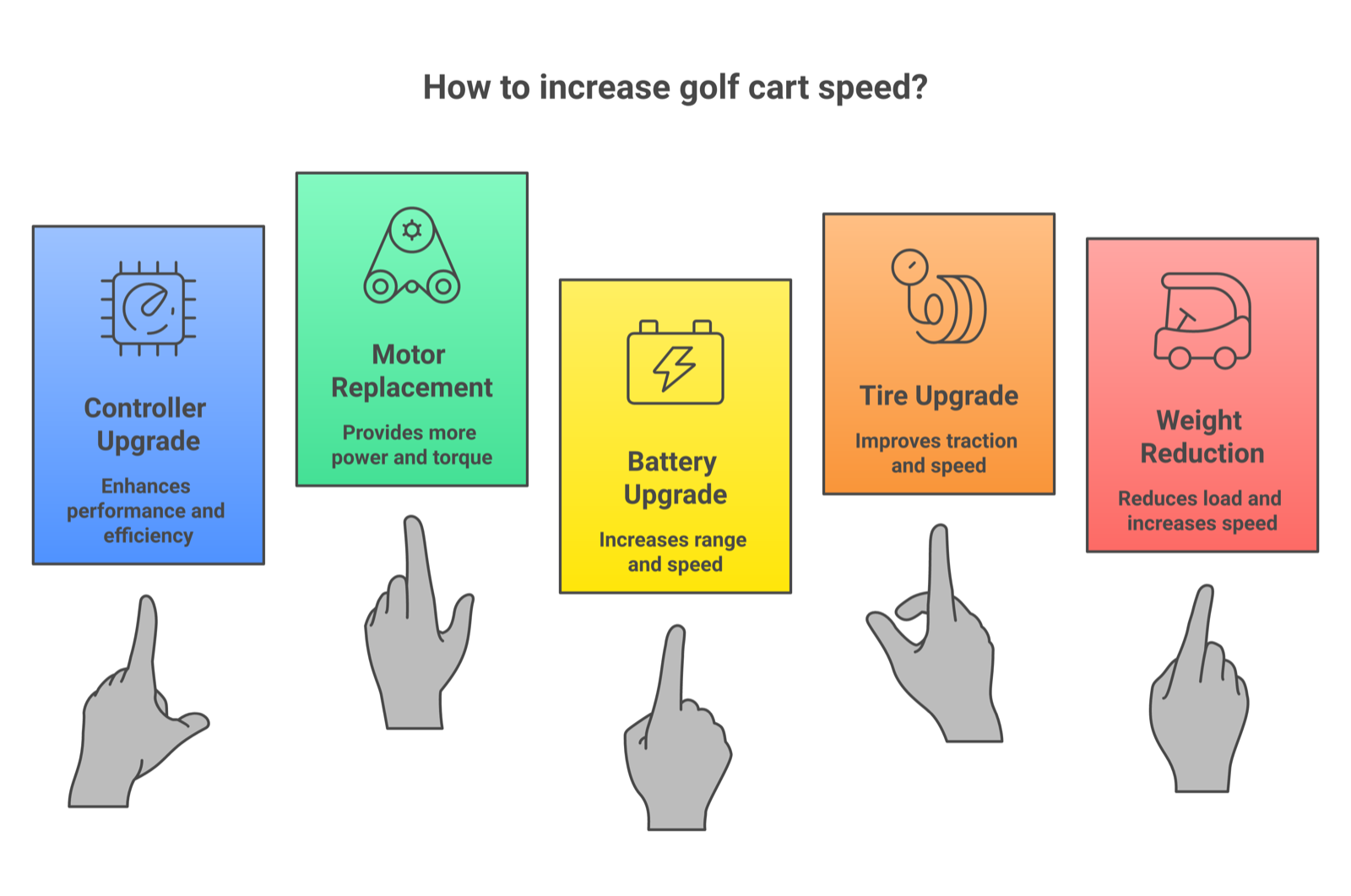

For Electric Carts (Recommended Order)

1. Tires + tire pressure, Cheapest, easiest, immediate result (D&D puts larger tires at 2 to 3 mph)
2. Controller upgrade, Lets the motor draw more current (gain depends on the motor and settings)
3. Lithium battery conversion, Weight savings + consistent power (about 228 lbs lighter in the Section 2 example)
4. Motor upgrade, Uses the full output of the new controller (D&D lists its speed motors at 21 to 24 mph)
5. Gear ratio change, Fine-tune top speed against torque (speed changes in proportion to the ratio)

Stack all five and the gains multiply, which is also how a modified cart ends up above 25 mph and outside the federal LSV definition (see the legal section). The 4x4 golf cart from EA starts on a 72V/200A system and lists a 25 mph top speed.

For Gas Carts (Recommended Order)

1. Tires + tire pressure, Same as electric, easy first win (same diameter math)
2. Governor spring adjustment, Free, short job (gain depends on the new RPM limit)
3. High-flow air filter + exhaust, Better breathing (retune the carburetor afterward)
4. Performance clutch, Better power transfer (mostly acceleration)
5. Full governor removal + carburetor retune, Maximum RPM (highest wear, see the warning above)

How fast a fully modified gas cart goes depends on the engine displacement and modification quality, and above 25 mph it no longer fits the federal LSV definition.

Speed Upgrades Compared: Gains and Difficulty

Here is how these modifications compare:

Upgrade	Speed Gain	Difficulty
Proper tire inflation	Restores speed lost to low pressure	Easy
Larger tires (20-22")	+2 to 3 mph (D&D Motor Systems)	Easy
Controller upgrade	Depends on motor and settings	Moderate
Lithium battery swap	Lighter pack, steadier voltage	Moderate
Motor upgrade (DC)	21 to 24 mph listed for D&D speed motors	Moderate
AC motor + controller	Depends on the kit and gearing	Advanced
Voltage conversion	+3 to 4 mph, 36V to 48V (D&D Motor Systems)	Advanced
Gear ratio change	Scales with ratio (11.59:1 to 10:1 is +16%)	Moderate
Governor adjustment (gas)	Depends on the new RPM limit	Easy
High-flow air filter	Small on its own; best with exhaust work	Easy
Performance exhaust	Small on its own; best with intake work	Easy
Performance clutch	Mostly acceleration	Moderate
Weight reduction	Mostly acceleration	Easy

For budget-conscious upgrades, start with tire inflation, weight reduction, and a governor adjustment (gas) or controller reprogram (electric).

A serious performance build means replacing the controller, batteries and motor together, which is the most involved option on this list.

Safety: Do Not Skip This Section

Faster is fun. Faster without proper safety upgrades is dangerous. A golf cart was not engineered like a car. The frame, suspension, brakes, and steering were designed around the factory top speed, which Yamaha lists as 12.0 mph for the 2026 Drive2 QuieTech. When you push well past that speed, every component is stressed beyond its original design parameters.

Brakes Must Be Upgraded Proportionally

This is the number one safety rule: never increase speed without upgrading braking capacity. Stock brakes are sized for the cart's factory top speed, and the energy they must absorb grows with the square of speed. If you are pushing past the factory speed, upgrade to disc brakes on the front axle at minimum, and fit disc brakes on all four wheels for a high-performance build.

Braking distance grows with the square of speed, so at 25 mph it is roughly 4 times what it was at 12 mph. On a lightweight cart with marginal brakes, that is the difference between a controlled stop and a collision.

Steering and Suspension

Stock steering components develop play over time. At 12 mph, a little looseness in the steering rack is barely noticeable. At 25 mph, it can cause dangerous darting and unpredictable handling. Inspect and tighten all steering components before increasing speed. Consider upgrading to heavy-duty tie rod ends and bushings.

Similarly, worn shocks and leaf springs that work fine at low speed will bottom out and bounce at higher speeds. Upgraded shocks improve stability and reduce the jarring ride quality that comes with going fast over uneven terrain.

Seat Belts and Lighting

If your cart is reaching 20+ mph and sharing road space with cars, you need seat belts and proper lighting. This is not optional. It is both a safety necessity and required equipment on a low-speed vehicle under federal rules. Our street legal golf carts guide covers the full requirements for road-legal operation including lights, mirrors, seat belts, and registration.

Speaking of lights, if you have not installed them yet, our guide to wiring lights on a 48V golf cart walks through the entire process.

Tire and Wheel Condition

Worn tires with low tread depth lose grip faster at higher speeds, especially in wet conditions. Cracked or dry-rotted sidewalls can fail catastrophically at speed. Before any performance upgrade, inspect your tires and replace them if they show signs of wear or aging. And make sure your lug nuts are properly torqued, a loose wheel at 25 mph is a serious emergency.

Legal Considerations: When a Golf Cart Becomes an LSV

This is where many people get surprised. Under federal rules, a four-wheeled vehicle with a top speed above 20 mph and no more than 25 mph is a Low-Speed Vehicle (LSV) covered by NHTSA Federal Motor Vehicle Safety Standards. LSVs have significantly stricter requirements:

• Headlights, taillights, brake lights, and front and rear turn signals
• Red reflex reflectors (one on each side toward the rear, and one on the rear)
• Mirrors (a driver-side exterior mirror, plus a passenger-side exterior or an interior mirror)
• Parking brake
• Seat belts for all occupants
• Windshield (DOT-approved)
• Vehicle Identification Number (VIN)
• State registration and insurance, where your state requires them
• A valid driver's license, where your state requires one

The specific cutoff varies by state and even by municipality. In Florida, state law defines a golf cart as a vehicle not capable of exceeding 20 mph. In California, an LSV may not be driven on a roadway with a speed limit above 35 mph, except where a local plan allows it. Some HOA communities have their own separate rules.

Bottom line: If you plan to take your modified cart on public roads, research your local laws before making any speed modifications. Getting cited for operating an illegal vehicle is an expensive lesson. Browse our street legal golf carts guide for state-by-state basics.

Warranty and Insurance Implications

Warranty terms differ by maker, so read yours before you modify anything. The 2026 Yamaha Drive2 QuieTech owner's manual, for example, tells owners not to make any modification that affects capacity or safe operation. If a warranty excludes modified parts, a failure after an upgrade may not be covered, so ask the maker before you start.

How to Protect Yourself

• Document everything: Keep receipts, take photos before and after each modification. If warranty claims arise, documentation of proper installation helps.
• Use compatible parts: Stick with reputable aftermarket brands (Navitas, Alltrax, Trojan, RELiON, Battle Born) that are designed for golf cart applications.
• Work with authorized installers: Some warranty policies are more lenient when modifications are performed by certified technicians.
• Insurance: Inform your insurance carrier about modifications. An undisclosed modification that contributed to an accident could void your liability coverage, a far more expensive problem than voided warranty.

Troubleshooting Common Speed Issues

Before spending money on upgrades, make sure a simple maintenance issue is not the real problem. Here are the most common reasons golf carts are slower than they should be:

Electric Cart Slowdowns

• Weak or dying batteries: Check voltage under load with a voltmeter, specific gravity with a hydrometer (flooded lead-acid), or the battery management system readout (lithium). Trojan recommends an equalizing charge only when specific gravity readings are low or vary by more than 0.030 after a full charge; cells that stay low after that need attention.
• Corroded connections: Battery terminal corrosion increases resistance and reduces power delivery. Clean terminals with baking soda and water, then apply dielectric grease.
• Worn brushes: DC motors have carbon brushes that wear down over time. Inspecting and replacing worn brushes can restore lost speed.
• Dragging brakes: Brake shoes or pads that do not fully release create constant friction that eats speed and range. Jack up each wheel and spin it by hand. It should rotate freely.
• Controller error codes: Flashing lights on the controller indicate stored fault codes. Refer to your controller manual to decode them. A simple reset sometimes restores full speed.

If your cart jerks or hesitates when accelerating, the issue might not be speed-related at all. Our guide to solving golf cart acceleration jerks covers the most common culprits.

Gas Cart Slowdowns

• Dirty air filter: A clogged filter starves the engine of air. Service it on your owner's manual schedule; Yamaha's 2026 Drive2 QuieTech schedule washes the pre-filter and checks the element every 6 months.
• Old spark plug: A fouled or worn spark plug causes misfires and power loss. Replace with the manufacturer-specified plug.
• Fuel system issues: Old gas, clogged fuel filter, or dirty carburetor all reduce performance. Drain old fuel, replace the filter, and clean or rebuild the carburetor if needed.
• Drive belt wear: A worn belt slips under load, wasting engine power before it reaches the wheels. Replace the belt if it shows cracks, glazing, or excessive wear.
• Low compression: If the engine has high hours and lacks power even with fresh maintenance, a compression test can reveal worn rings or valves. This typically means an engine rebuild or replacement.

Why Higher-Voltage Electric Carts Have the Speed Advantage

If you are shopping for a new golf cart and speed is a priority, one of the simplest decisions you can make is buying a higher-voltage model from the start. Upgrading a 36V cart to 48V means buying a matched controller, batteries, cables and charger. Buying a higher-voltage cart from the factory avoids that because all the components are already matched.

The EA4R+ 60V comes with a 60-volt lithium battery and a high-torque electric motor, and lists a 25 mph top speed. It ships with the higher-voltage system that a stock 48V cart would need aftermarket parts to match. The EA4X4 72V runs a 72V/200A four-wheel-drive system with a high-torque AC motor.

Browse our full lineup of golf carts and accessories to find the right starting point for your speed goals. Starting fast and upgrading from there beats chasing modifications on an underpowered platform every time.

Frequently Asked Questions

What is the fastest way to make my golf cart faster without spending much money?

Check your tire pressure first, under-inflated tires cost you speed, and fixing them is free. Then remove unnecessary weight (cooler racks, brush guards, cargo). On gas carts, adjust the governor spring. On electric carts, see if your controller has adjustable speed settings. These four steps cost little or nothing.

Can I make a 36V golf cart as fast as a 48V?

Not practically. You can increase a 36V cart's speed with tires and a controller upgrade, but the voltage ceiling limits your motor's RPM potential. Converting to 48V involves replacing batteries, controller, charger, and potentially the motor, at that point, selling the 36V cart and buying a 48V model is usually more cost-effective. Read our 36V vs 48V comparison for the full breakdown.

Is it safe to remove the governor on a gas golf cart?

Adjusting the governor spring for a moderate RPM increase is relatively safe. Fully removing the governor allows the engine to over-rev, which accelerates wear on the engine, clutch, and drivetrain. If you remove the governor, upgrade the clutch and consider the exhaust system as well. And always upgrade the brakes to match the new top speed.

Will speed modifications void my warranty?

Warranty terms differ by maker. Yamaha's owner's manual, for example, warns against modifications that affect capacity or safe operation, so read your own warranty before you modify anything. Using reputable aftermarket parts and having modifications installed by qualified technicians gives you the best chance of maintaining some warranty protection. Document everything you do.

How fast can an electric golf cart realistically go?

It depends on voltage, motor, controller and gearing, and higher-voltage systems (60V to 72V) have the most headroom. Keep the legal limit in mind: under federal rules a low-speed vehicle tops out at 25 mph, and a faster vehicle no longer qualifies as one.

Do larger tires affect my golf cart's range?

Yes, slightly. Larger tires increase the load on the motor, which draws more power and can reduce range. Lithium batteries offset this better than lead-acid because they hold a flatter voltage as they discharge. Check our electric golf cart range guide for more details on factors that affect how far your cart will go on a single charge.

What is the difference between a speed motor and a torque motor?

Speed motors have smaller field coils that allow the armature to spin faster, increasing top speed but reducing low-end pulling power. Torque motors have larger coils for stronger magnetic fields, delivering more grunt from a standstill but capping top speed lower. For most users, a moderate high-speed motor balances both needs; compare its rated RPM with your stock motor's.

Final Takeaway

Making your golf cart faster is not complicated, but doing it right requires matching your upgrades to each other and to your actual use case. A controller upgrade paired with lithium batteries and properly sized tires will transform any electric cart. A governor adjustment with intake and exhaust work will open up a gas cart. And in both cases, upgrading the brakes and safety equipment needs to happen alongside, not after, the speed mods.

Start with the cheapest and easiest modifications (tires, weight, tire pressure) to see immediate results. Then work your way up the list based on your budget and performance goals. And if you are in the market for a cart that is already built for speed, check out our electric golf cart lineup, models like the EA4R+ 60V and EA4X4 72V list a 25 mph top speed, the federal LSV ceiling, right out of the box.

Want 25 mph without modifying anything? Every cart in the EA Carts lineup lists a 25 mph top speed. See the models, or talk to the EA Carts team about one.
