How Wide is a Golf Cart? Essential Dimensions Guide
EA Carts manufactures electric golf carts in multiple configurations. This guide includes golf cart dimensions for all major brands based on manufacturer specifications.

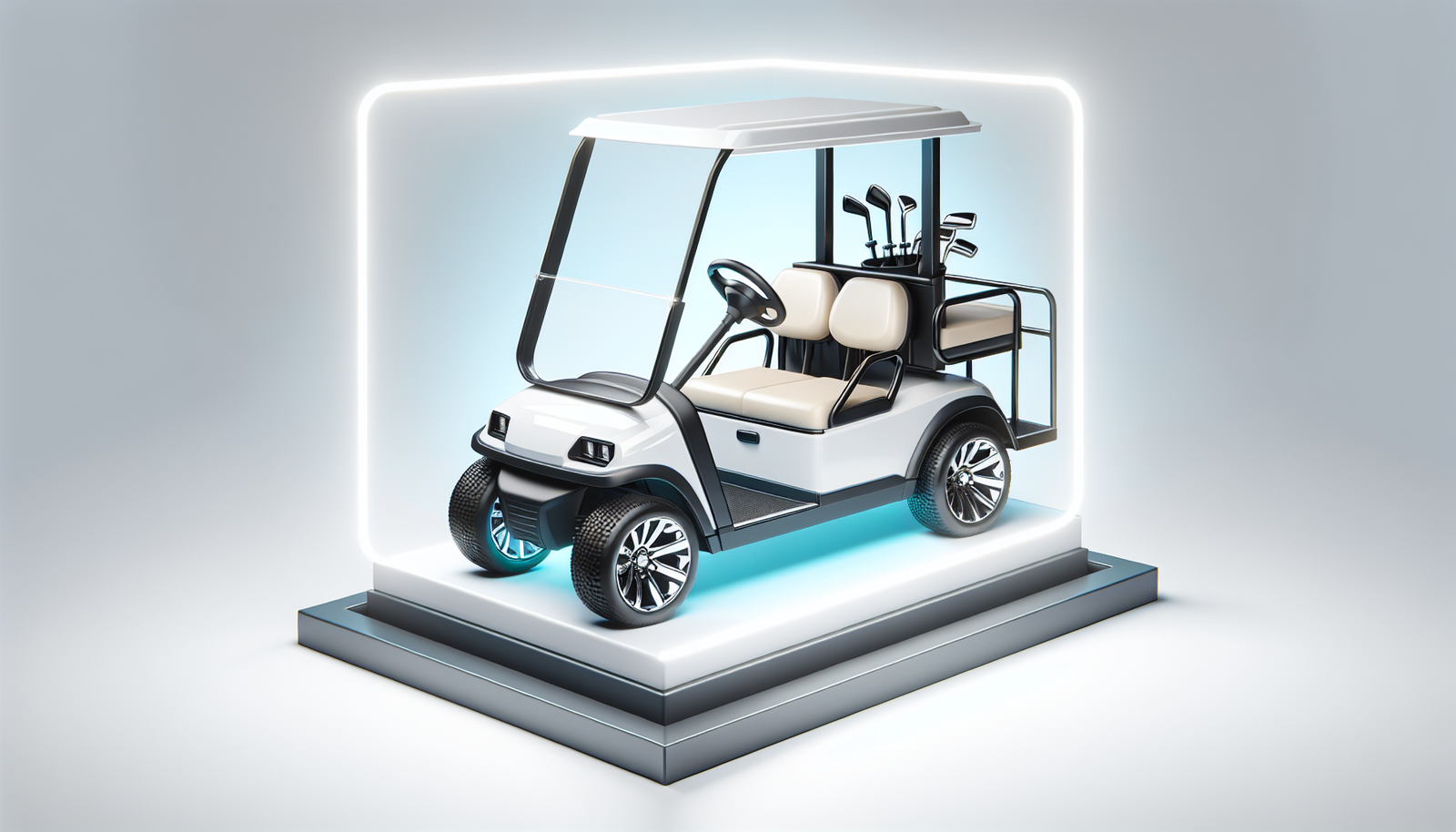

A standard golf cart is approximately 48 inches (4 feet) wide, 92 inches (7.7 feet) long, and 70-75 inches tall. Golf cart dimensions vary by brand, model, and seating capacity, ranging from 45 inches wide for narrow 2-seaters to 56+ inches for lifted 6-seat models.
If you've ever tried to squeeze a golf cart through a garage door, onto a trailer, or down a narrow path, you already know that dimensions matter. A lot. The question "how wide is a golf cart?" sounds simple enough, but the answer depends on the brand, model, seating capacity, and whether you've added a lift kit or aftermarket accessories.
I've spent years working with golf carts across every major brand, Club Car, the aluminum-frame golf cart brand owned by Platinum Equity,, EZGO, Yamaha, the Japanese motor company known for engine reliability,, and newer electric manufacturers like EA Carts. In this guide, I'll break down the exact width, length, and height measurements for dozens of popular models, explain why those numbers actually matter for your day-to-day use, and help you figure out which cart fits your specific situation.
Standard Golf Cart Width: The Quick Answer
A standard two-passenger golf cart is approximately 47 to 49 inches wide (about 4 feet). That's the number most people are looking for, and it applies to the majority of traditional golf carts you'll see on courses and in neighborhoods.
But here's where it gets more detailed. Golf cart widths actually range from 45 inches to 58 inches depending on the model type:
- Standard 2-seater golf carts: 47-49 inches wide
- 4-passenger golf carts: 47-51 inches wide
- 6-passenger golf carts: 47-48 inches wide
- Utility/off-road carts: 53-58 inches wide
- LSV (Low-Speed Vehicles): 47-51 inches wide
The width doesn't always increase with seating capacity. Manufacturers typically add length (not width) when they add rear-facing seats. A 6-passenger cart like the EA6R+ 72V extends rearward rather than getting wider, which keeps it compatible with standard golf course paths and garage openings.
Golf Cart Dimensions by Brand: Complete Comparison Tables
Below are exact measurements pulled from manufacturer spec sheets for the three dominant brands, Club Car, EZGO, and Yamaha, plus dimensions for popular EA Carts models. All measurements are in inches.
Club Car Dimensions
Club Car is the most widely recognized name in golf carts, and their lineup spans everything from basic golf course vehicles to heavy-duty utility models. Here are the current dimensions across their key models:
| Model | Length | Width | Height | Seats |
|---|---|---|---|---|
| Villager 2 | 92" | 47" | 68" | 2 |
| Villager 2 LSV | 91" | 47" | 69" | 2 |
| Villager 2+2 LX LSV | 110" | 51" | 50" | 4 |
| Onward 2 Passenger | 92" | 48.75" | 71" | 2 |
| Onward 4 Passenger | 108" | 48.75" | 71" | 4 |
| Onward Lifted 4 Passenger | 108" | 49" | 75" | 4 |
| Precedent Stretch PTV | 144" | 47" | 69" | 6 |
| XRT 800 | 100" | 45" | 47" | 2 |
| XRT 1550 | 125" | 58" | 82" | 2 |
A few things stand out. The Onward series, Club Car's most popular consumer line, sits right at 48.75 inches wide regardless of whether it's a 2-seater or 4-seater. The XRT 1550, a utility workhorse, is the widest at 58 inches. And the Precedent Stretch, despite seating 6 people, is actually narrower than the Onward at just 47 inches.
EZGO (E-Z-GO) Dimensions
EZGO carts tend to run slightly narrower than Club Car, with most models hitting 47 inches. Their Express series for 4+ passengers widens to 48 inches, while the off-road Express 4x4 stretches to 53 inches.
| Model | Length | Width | Height | Seats |
|---|---|---|---|---|
| Freedom TXT | 93" | 47" | 46" | 2 |
| Freedom RXV | 94" | 47" | 45" | 2 |
| Valor | 93" | 47" | 47" | 2 |
| 2Five (LSV) | 107" | 47" | 71" | 2 |
| Express S4 | 108" | 48" | 52" | 4 |
| Express L6 | 143" | 48" | 49" | 6 |
| Express 4x4 | 112" | 53" | 77" | 4 |
The EZGO Express 4x4 is worth calling out, at 53 inches wide and 77 inches tall, it's a completely different animal than the standard Freedom TXT. If you're comparing an off-road cart to a standard model, expect 5-6 extra inches of width.
Yamaha Dimensions
Yamaha builds some of the most diverse golf cart lineups, from the compact Drive 2 to the commercial-grade UMax series. Their widths range from 47 inches on passenger models up to 53 inches on the UMax Rally.
| Model | Length | Width | Height | Seats |
|---|---|---|---|---|
| The Drive 2 | 94" | 47" | 71" | 2 |
| Adventurer Sport 2+2 | 109" | 51" | 50" | 4 |
| Concierge 4 | 128" | 47" | 48" | 4 |
| Concierge 6 | 161" | 47" | 47" | 6 |
| UMax One | 111" | 49" | 72" | 2 + bed |
| UMax Two | 119" | 49" | 72" | 2 + bed |
| UMax Rally | 122" | 53" | 51" | 2+2 |
| UMax Bistro | 128" | 49" | 49" | Utility |
The Yamaha Concierge 6 is the longest cart on this list at 161 inches (over 13 feet), but it stays just 47 inches wide. That's a deliberate engineering choice, keeping the width under 48 inches means the cart can still navigate standard golf course cart paths, even at 6-passenger length.
EA Carts Dimensions
EA Carts, the electric golf cart manufacturer based in Carmel, Indiana, builds electric golf carts designed for family use, neighborhood driving, and adventure. Their lineup includes four-seater models and six-seaters with powerful lithium battery systems.
| Model | Voltage | Approx. Width | Seats | Best For |
|---|---|---|---|---|
| EA2GOLF 60V | 60V | ~47" | 2 | Golf course, daily driving |
| EA4R 48V | 48V | ~48" | 4 | Neighborhood, family use |
| EA4R+ 60V | 60V | ~48" | 4 | Extended range, hills |
| EA6R+ 72V | 72V | ~48" | 6 | Large families, events |
| EA4X4 72V | 72V | ~52" | 4 | Off-road, trails, hunting |
The EA Carts lineup follows the same dimensional logic as major brands. Standard passenger models stay within the 47-48 inch width range for path and garage compatibility, while the EA4X4 off-road model widens to approximately 52 inches for added stability on uneven terrain.
Why Golf Cart Width Actually Matters
Width isn't just a number on a spec sheet. It directly affects four things you'll deal with regularly: garage storage, trailer transport, path access, and passenger comfort. Let me break down each one.
Garage and Storage Fit
A standard single-car garage door is 8 to 9 feet wide (96-108 inches). A standard two-car garage door runs 16 feet (192 inches). At 47-49 inches, virtually every golf cart will physically fit through either opening.
But "fitting through the door" and "fitting in the garage" are two different conversations. Here's the real math:
- Single-car garage (typical 12' x 20'): You can fit a golf cart beside a standard sedan with about 12-18 inches of clearance on each side. Tight, but doable.
- Two-car garage (typical 20' x 20'): Fits a golf cart plus two vehicles comfortably, with walking room.
- Dedicated golf cart garage: Minimum 6 feet wide by 10 feet deep for a 2-seater. Add 4 feet of depth for a 6-seater.
The critical measurement most people overlook is height. Standard garage doors are 7 feet tall (84 inches). Most golf carts with a roof sit between 68-77 inches, well under the limit. But if you've installed a lift kit, you could gain 3-6 inches of height, pushing taller carts dangerously close to that 84-inch clearance. Always measure the cart with the roof and any accessories before assuming it'll fit.
Trailer Transport
Hauling a golf cart to the course, the campground, or a vacation home requires matching cart dimensions to trailer size. Here's what you need:
| Cart Type | Recommended Trailer Size | Why |
|---|---|---|
| Standard 2-seater | 5' x 8' minimum | Cart is ~47" wide x ~93" long; tight but functional |
| Standard 4-seater | 5' x 10' recommended | Cart is ~48" wide x ~108" long; extra length for the rear seat |
| 6-passenger cart | 5' x 14' or 6' x 14' | Carts run 143-161" long; need the full length |
| Off-road / lifted cart | 6' x 10' minimum | Wider carts (52-58") need 6' wide trailer decks |
| Two carts side-by-side | 8.5' x 10' | Two standard carts at ~48" each need ~96" of width |
A standard 5' x 10' utility trailer handles most 2-seater and 4-seater golf carts without issues. The inside width of these trailers is typically 58-60 inches, giving you 10-13 inches of clearance beyond a standard cart's width. That's enough room for tie-down straps and a little breathing room, but not much more.
If you're hauling an off-road cart or a lifted model with wider tires, step up to a 6-foot-wide trailer. The extra 12 inches make loading, securing, and unloading dramatically easier.
Golf Course and Community Path Width
Golf cart paths on courses are typically 8 feet wide (96 inches). That's roughly double the width of a standard cart, which means two carts can pass each other comfortably on most paths, with a few inches to spare on each side.
Community paths and multi-use trails vary more widely:
- Golf course cart paths: 8 feet (96"), standard across most courses
- Community/neighborhood paths: 6-10 feet depending on the development
- Bike/multi-use paths: 8-12 feet where golf carts are permitted
- Gated community roads: Standard road width (typically 20-24 feet)
The 47-48 inch standard width exists partly because of cart path design. Manufacturers keep carts under 4 feet wide so two vehicles can safely share an 8-foot path. If you're buying a wider utility model (53+ inches), confirm that your local paths and course rules accommodate the extra width.
Passenger Comfort and Stability
Width also affects how the cart feels to ride in. A narrower cart (45-47 inches) means shoulders are closer together in the front seat, which can feel cramped for larger or taller riders. Wider carts (49-51 inches) offer noticeably more elbow room.
Stability is the other factor. A wider wheelbase creates a lower center of gravity relative to the cart's track width, reducing the risk of tipping on turns or uneven terrain. This is exactly why off-road models like the Club Car XRT 1550 (58" wide) and the EZGO Express 4x4 (53" wide) are significantly wider than their on-road counterparts. They need that extra stability for rough terrain at speed.
Golf Cart Length: The Other Critical Dimension
Width gets the headlines, but length is what actually determines whether your cart fits in your garage, on your trailer, or in a tight parking spot. Here's a quick reference by seating capacity:
| Seating Capacity | Typical Length Range | Average |
|---|---|---|
| 2-passenger | 91", 94" | ~93" (7.75 ft) |
| 4-passenger | 107", 128" | ~110" (9.2 ft) |
| 6-passenger | 143", 161" | ~149" (12.4 ft) |
| Utility (w/ bed) | 100", 128" | ~115" (9.6 ft) |
The jump from 2-seater to 4-seater adds roughly 15-18 inches of length. Going from 4 to 6 seats adds another 30-40 inches. That's a meaningful difference, a 6-passenger Yamaha Concierge at 161 inches is over 5.5 feet longer than a standard 2-seat Drive 2.
For garage planning, measure your available depth. A 2-seater needs about 8 feet of floor space. A 4-seater needs about 9.5 feet. And a 6-seater needs a full 13-14 feet, which is tighter than you'd expect in a standard 20-foot-deep garage once you account for workbenches, shelving, and wall clearance.
Golf Cart Height: Roof, Lift Kits, and Clearance
Height varies more than you might expect across golf cart models. Standard 2-seaters range from 45 inches (without a roof) to 72 inches (with a full canopy top). Here's the breakdown:
| Configuration | Typical Height Range | Notes |
|---|---|---|
| Without roof | 45", 52" | Low-profile, easy to store |
| With standard roof | 68", 72" | Most common configuration |
| With lift kit (3") | 71", 75" | Popular upgrade |
| With lift kit (6") | 74", 78" | Off-road builds |
| Utility/off-road models | 77", 82" | Club Car XRT 1550 is 82" |
That 82-inch height on the Club Car XRT 1550 is just 2 inches shy of a standard 7-foot garage door. If you're running a tall utility cart with a roof rack, light bar, or any overhead accessories, measure carefully.
Lift kits deserve special attention. A 3-inch lift kit is the most popular upgrade, and it pushes a roofed cart from around 71 inches up to 74 inches. A 6-inch lift takes you to 77+ inches. Both still clear a standard garage door, but the margin gets thin, especially if your garage floor slopes or the concrete pad has settled unevenly over the years.
Golf Cart Weight: How Much Do They Weigh?
Weight doesn't affect how wide your cart is, but it matters for trailer selection, ramp loading, and understanding what your tow vehicle needs to handle. Here are typical weights by cart type:
| Cart Type | Typical Weight Range | Key Factor |
|---|---|---|
| Gas 2-seater | 600-800 lbs | Engine and fuel tank add weight |
| Electric 2-seater (lead-acid) | 900-1,100 lbs | Lead-acid batteries are heavy |
| Electric 2-seater (lithium) | 600-800 lbs | Lithium saves 200-400 lbs |
| 4-passenger | 800-1,200 lbs | Varies by battery type |
| 6-passenger | 1,000-1,400 lbs | Longer frame + extra seats |
| Utility / off-road | 1,000-1,600 lbs | Heavier suspension, drivetrain |
An important distinction: electric carts with lithium batteries (like EA Carts models) typically weigh 200-400 pounds less than equivalent carts running lead-acid batteries. That weight savings matters when you're loading onto a trailer, driving up hills, and calculating tow vehicle capacity.
How to Measure Your Golf Cart Correctly
Manufacturer specs tell you the base dimensions, but your cart might not match those numbers exactly. Accessories, modifications, and even tire choice can change the effective width, length, and height. Here's how to get accurate measurements:
Measuring Width
- Park on a flat, level surface. Slopes or uneven ground can skew readings by an inch or more.
- Measure at the widest point. On most carts, that's the rear fenders or the body panels at hip height, not the wheels. Wheels may tuck inward slightly.
- Include accessories. Side mirrors, fender flares, brush guards, and nerf bars can add 2-6 inches to the effective width. If you've added anything that protrudes, measure from the outermost point on each side.
- Measure with tires inflated. Under-inflated tires bulge outward slightly, adding up to half an inch per side.
Measuring Length
- Include the bumpers and any hitch. A rear trailer hitch or front brush guard can add 3-8 inches beyond the body.
- Account for roof overhang. Some canopy tops extend 2-4 inches past the rear body panel.
- If the seat folds, measure in both positions. Some rear-facing seats fold up, changing the effective length.
Measuring Height
- Measure from the ground to the highest fixed point. Usually the top of the roof or canopy frame.
- Check with all accessories mounted. Roof racks, light bars, flag holders, and GPS mounts all add height.
- If your cart has adjustable suspension or air shocks, measure at normal ride height, not compressed or extended.
Fitting a Golf Cart in Your Garage: Planning Guide
Let's get practical. Here's a garage planning worksheet based on real golf cart dimensions and standard garage sizes:
| Garage Type | Door Width | Interior Width | Interior Depth | Cart + Car Feasible? |
|---|---|---|---|---|
| Single-car | 8', 9' | 12' | 20' | Yes (tight), cart beside car with ~12" clearance per side |
| Two-car | 16' | 20', 24' | 20', 22' | Yes, cart + 2 cars with comfortable room |
| Three-car | 16' + 8' | 30', 36' | 20', 22' | Yes, dedicated cart bay possible |
Minimum clearance recommendations:
- Side clearance: 12 inches minimum between cart and wall/car. 24 inches preferred for comfortable access.
- Front/rear clearance: 12 inches minimum. 24 inches preferred to open the cart's storage compartments and charge without moving it.
- Overhead clearance: 6 inches minimum between cart top and garage door track/opener. More if you have a lift kit.
- Charging access: Make sure a standard 110V outlet is within cord reach (typically 6-10 feet from the cart).
Pro tip: If you're building a new garage or adding a bay specifically for a golf cart, plan for a 7-foot wide by 12-foot deep minimum space. That comfortably fits any 4-seater with room for a charger, shelving for accessories, and easy walk-around access.
Choosing the Right Cart Size for Your Needs
Knowing the dimensions is only useful if you match them to your actual use case. Here's a decision framework based on the most common scenarios:
Golf Course Only
If your cart exclusively lives on the course, a standard 2-seater at 47 inches wide and 93 inches long is your best bet. It fits all cart paths, fits through all course infrastructure, and is the easiest to maneuver around tight turns near greens and tees. The EA2GOLF 60V is purpose-built for exactly this scenario.
Neighborhood and Community Use
For driving around a retirement community, gated neighborhood, or beach town, a 4-seater gives you the passenger capacity for daily errands and socializing. The EA4R+ 60V at approximately 48 inches wide fits every standard path while carrying the family. If you need street-legal capability, look for an LSV model with headlights, tail lights, turn signals, and a VIN.
Large Family or Event Use
Hauling 5-6 people? You'll need a 6-seater like the EA6R+ 72V. Just remember: these carts are 12-13+ feet long. Verify your garage depth and trailer length before buying. The width stays manageable (47-48 inches), so paths and doors aren't the issue, parking length is.
Off-Road, Hunting, and Farm Use
Off-road carts like the EA4X4 72V run wider (52+ inches) for stability on trails and uneven ground. If you're driving through gates, barn doors, or narrow trail openings, measure everything first. A 5-foot-wide trail gap that looks plenty wide might only give you 4-6 inches of clearance per side with a 52-inch cart.
Multi-Use (Golf + Neighborhood + Occasional Hauling)
If you want one cart that does everything, a standard-width 4-seater (48 inches wide, 108 inches long) is the most versatile choice. It fits cart paths, garages, standard trailers, and carries enough people for most daily activities. The EA4R 48V hits this sweet spot. You can always add a small rear cargo bed or basket for utility tasks without changing the cart's core dimensions.
How Modifications Affect Golf Cart Dimensions
The dimensions in manufacturer spec sheets assume a bone-stock cart. The moment you start upgrading, those numbers change. Here are the most common modifications and their dimensional impact:
| Modification | Width Impact | Height Impact | Length Impact |
|---|---|---|---|
| Lift kit (3") | +0" to +1" | +3" | No change |
| Lift kit (6") | +0" to +2" | +6" | No change |
| Wider tires/wheels | +1" to +4" | +0.5" to +1" | No change |
| Fender flares | +2" to +4" | No change | No change |
| Side mirrors | +4" to +8" | No change | No change |
| Brush guard / bull bar | +0" to +2" | +0" to +3" | +3" to +6" |
| Rear cargo bed | No change | No change | +6" to +18" |
| Light bar (roof) | No change | +2" to +4" | No change |
| Nerf bars / side steps | +3" to +6" | No change | No change |
The modification that catches people off guard most often? Side mirrors. A pair of universal golf cart mirrors adds 4-8 inches to your effective width. That's the difference between clearing a narrow gate and scraping the posts. If you're running mirrors, always measure from mirror tip to mirror tip when calculating clearances.
Golf Cart Dimensions vs. Other Vehicles
To put golf cart size in perspective, here's how they compare to other common vehicles:
| Vehicle | Approx. Width | Approx. Length | Comparison |
|---|---|---|---|
| Standard golf cart (2-seat) | 47" | 93" | Baseline |
| ATV / quad | 44", 50" | 72", 84" | Similar width, shorter |
| Side-by-side UTV | 60", 64" | 110", 130" | Significantly wider |
| Smart car | 65" | 106" | ~18" wider than a cart |
| Compact sedan | 70" | 175" | Nearly 2 feet wider |
| Full-size pickup truck | 80" | 230" | More than 2.5x the length |
A golf cart is roughly the same width as a large ATV but considerably narrower than a UTV or any road-legal car. That compact footprint is one of the biggest practical advantages of owning a golf cart. It fits in spaces where no other motorized vehicle would.
Frequently Asked Questions
What is the standard width of a golf cart?
The standard width of a golf cart is approximately 47 to 49 inches (about 4 feet). This applies to most 2-passenger and 4-passenger models from major manufacturers including Club Car, EZGO, and Yamaha. Off-road and utility models can be wider, ranging from 52 to 58 inches.
Will a golf cart fit in a standard garage?
Yes. A standard single-car garage door is 8-9 feet wide, and even the widest consumer golf carts are under 5 feet wide. Height is more of a concern, make sure there's at least 6 inches of clearance between the cart's roof and the garage door track, especially if you have a lift kit installed.
What size trailer do I need for a golf cart?
A 5' x 10' utility trailer fits most 2-seater and 4-seater golf carts. For 6-passenger carts, you'll need at least a 5' x 14' trailer. If your cart is wider than standard (off-road or lifted models), upgrade to a 6-foot-wide trailer for safe loading and tie-down clearance.
How wide are golf cart paths?
Standard golf course cart paths are 8 feet wide (96 inches). This allows two standard-width carts to pass each other with a few inches of clearance on each side. Community paths and multi-use trails vary between 6 and 12 feet wide.
Do 4-seater golf carts take up more width than 2-seaters?
Usually no. Most manufacturers add length (not width) when adding rear seats. A 4-passenger Club Car Onward is the same 48.75 inches wide as the 2-passenger version. It's just 16 inches longer. Some 4-seater models with wider rear seats (like the Yamaha Adventurer Sport 2+2) do add a few inches of width, reaching 51 inches.
How much does a golf cart weigh?
Golf cart weight ranges from 600 pounds (gas or lithium-electric 2-seaters) to 1,600 pounds (heavy utility models with lead-acid batteries). Electric carts with lithium batteries typically weigh 200-400 pounds less than lead-acid equivalents, which matters for trailering and hill climbing.
What's the difference between a golf cart and a Low-Speed Vehicle (LSV)?
Physically, LSVs are similar in dimensions to standard golf carts (47-51 inches wide, 91-110 inches long). The difference is equipment and legal classification: LSVs include headlights, tail lights, turn signals, mirrors, seat belts, and a VIN number, making them street legal on roads with speed limits of 35 mph or less (varies by state).
Can two golf carts fit side by side on a trailer?
Yes, if your trailer is at least 8.5 feet wide. Two standard-width carts at ~48 inches each require about 96 inches (8 feet) of trailer deck width, plus a few inches for tie-down straps and clearance. An 8.5-foot-wide tandem trailer works well for hauling two carts.
Final Thoughts
Golf cart dimensions aren't just trivia, they're practical information that affects every decision from which cart to buy to where you can drive and store it. The good news is that the industry has converged on a remarkably consistent standard: roughly 47-49 inches wide, 93-110 inches long (for 2-4 seaters), and 68-72 inches tall with a roof.
If you're shopping for a new cart and want to skip the guesswork, browse the full EA Carts lineup, every model is designed to fit standard paths, garages, and trailers while delivering the power and comfort you'd expect from a premium electric golf cart. Not sure which type of golf cart is right for you? Check our guide comparing all the categories, or see how EA Carts stacks up against the competition in our best golf cart brands comparison.
And if financing is a factor, we've got a complete breakdown of your options to make the purchase easier.
